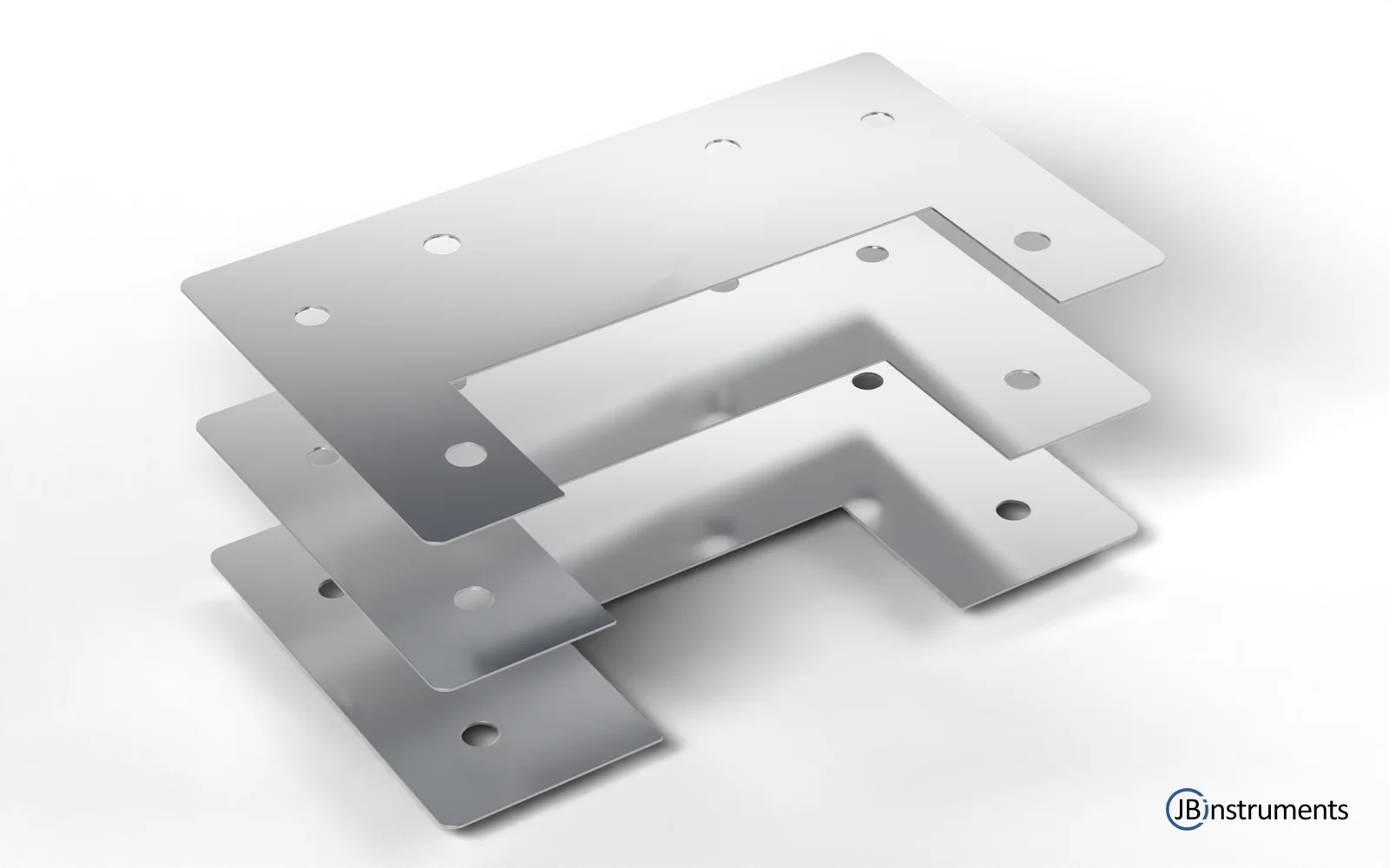

Custom Shims and Plates for Slot-Die Coating
Design your own shims an plates. Laser-cut shims and plates made of stainless steel – manufactured according to your design, for slot-dies of any manufacturer and for self-developed slot-dies. Send us your DXF file or a dimensioned drawing, choose thickness and quantity, and receive your custom shims typically within two weeks.
Why custom shims?
In a slot-die, the shim defines the slot gap and the coating width; plates can define the protrusion. Standard shims do not always fit your process. Custom shims are the solution when
- the shim thickness (slot gap) shall be changed
- the coating width shall be adapted,
- the protrusion shall be adapted
- shims for your slot-die are no longer available, or you use a self-developed slot-die
Key facts
- Laser cut stainless steel
- Thickness: 75 / 100 / 150 / 200 µm
- Precision of the manufacturing process: ± 10 µm
- Outer size: min. 20 × 20 mm, max. 200 × 200 mm
- Smallest radius (inner and outer corners): 0.1 mm
- Your input: DXF file (scale 1:1, mm) or dimensioned drawing – hand drawings are accepted
- Delivery time: typically 2 weeks after all technical questions are clarified

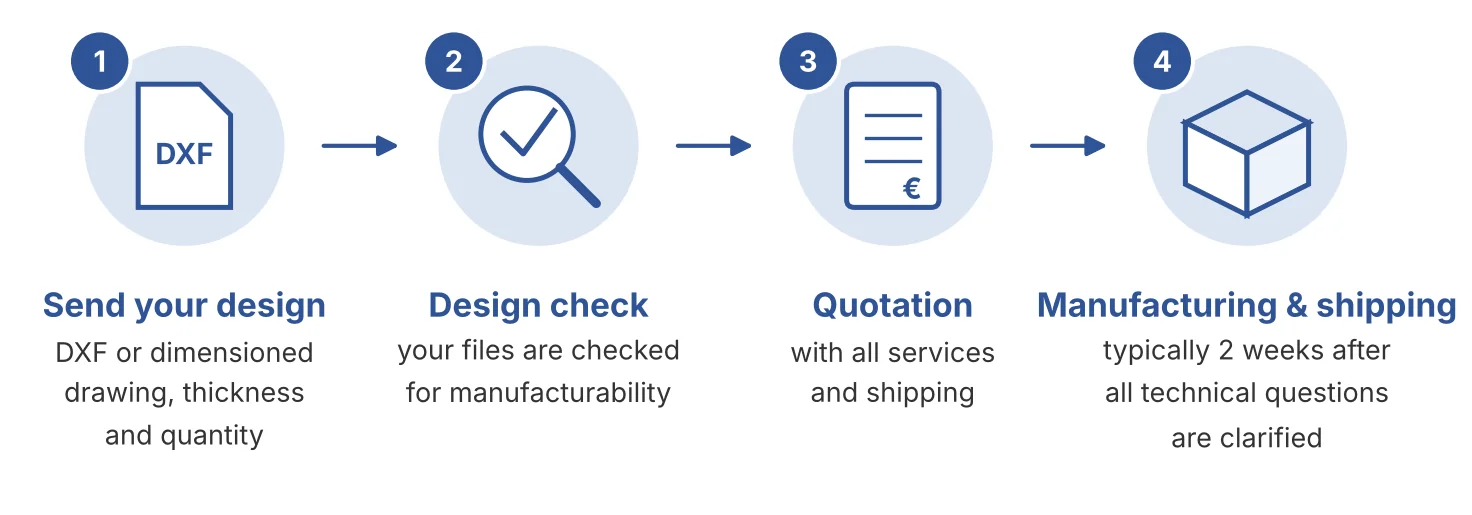

How it works
- Send your request with the form below: your DXF file(s) or drawing(s), thickness and quantity for each design, and your desired delivery time.
- Design check: we check your files for manufacturability. If problems are to be expected, we make small adjustments in agreement with you – or you send us a revised file. If you only have a dimensioned drawing, we create the digital drawing for you.
- We send you a quotation.
- Manufacturing and shipping: after your order, the shims are manufactured and shipped – typically within 2 weeks after all technical questions are clarified.
You can combine several designs and thicknesses in one request, e.g. Design 1: 5 × 100 µm; Design 2: 2 × 150 µm.

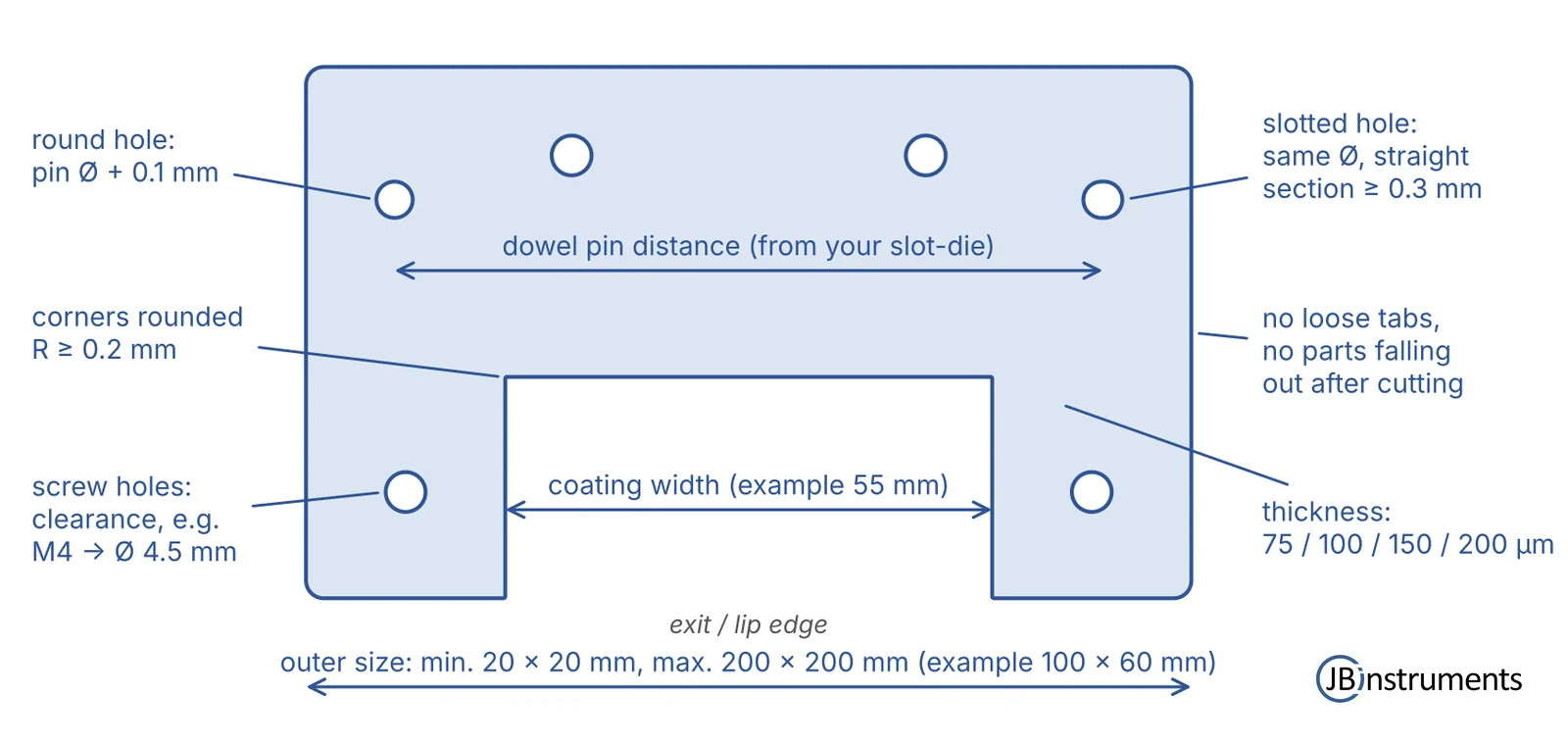

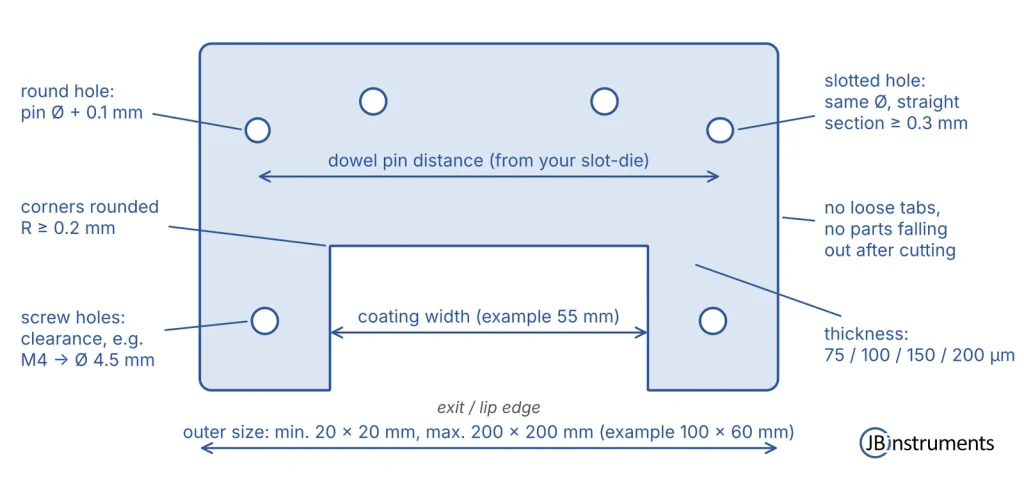

Design recommendations
We recommend the following design rules. They make your shims manufacturable and easy to handle:
- Avoid loose tabs and no parts that fall out after laser cutting.
- Round all corners with R ≥ 0.1 mm. Sharp corners cause problems in manufacturing, and lint tends to collect in them during cleaning.
- Dowel pin 1: round hole with oversize – pin Ø + 0.1 mm (+50 µm on the radius).
- Dowel pin 2: slotted hole along the axis between both pins, same width as the round hole, straight section ≥ 0.3 mm. The pin is expected in the middle of the straight section.
- Screw holes: clearance hole approx. 0.5–1 mm larger than the screw, e.g. M6 → Ø 6.5 mm, if the shim is positioned by dowel pins.
- Outer size between 20 × 20 mm and 200 × 200 mm.
All details, figures and a checklist are given in our data sheet. A DXF template with an example shim helps you get started (see downloads below).
Prices
Prices on request. Unit prices depend on quantity, size, thickness and complexity of the geometry; quantity discounts apply to the total number of shims in an order. Design check, digital drawing (if required) and shipping are listed in the quotation.
Downloads
Request a quotation
Fill in the form and attach your files (DXF, PDF, PNG or JPG, max. 10 MB per file). Alternatively, send your request to info@jbinstruments.de.
Shims and plates are made according to the customer’s design. The customer is responsible for all dimensions and tolerances. JB Instruments assumes no liability for the function of the parts or for the sufficiency of tolerances.
